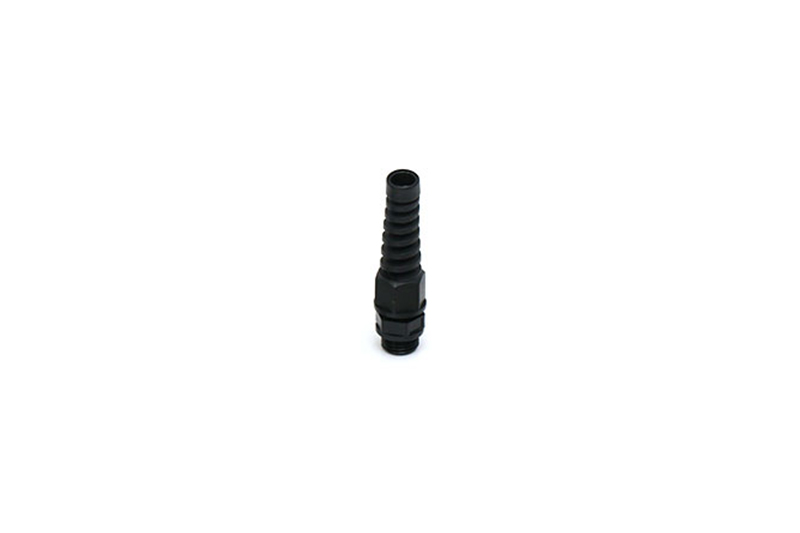

防折彎保護尼龍防水固定連接頭耐扭塑料電纜接頭
分類：塑料電纜防水接頭
型號：SCG
品牌：ATR
產地：寧波市奉化區
廠家：奉化市安泰爾電器有限公司
產品詳情
產品概述
防水耐扭防折彎保護塑料電纜接頭取用尼龍PA66材料，密封圈取用三元乙丙耐候橡膠件；也可定制耐寒、耐化學或抗腐蝕性橡膠；因追加了螺旋耐扭式結構，在保護往返運動的電纜上此產品使用最佳，適用于手動或移動式設備，可避免電纜線出線時用力過猛導致的扭曲損壞，例如手持設備、儀器等；不一樣的夾緊爪和夾緊密封圈的設計之處，可使得夾緊電纜線徑的范圍增大，使得抗拉力增強，可防水、耐弱酸、酒精等一般性液體。
技術參數
SCG-M 公制螺紋
| 編號 | 螺牙規格 | 電纜范圍(mm) | 螺紋外徑(mm) | 螺紋長度(mm) | 扳手徑 | 包裝 |
| SCG-M12S | M12*1.5 | 3-6.5 | 12 | 8.5 | 18/15 | 50 |
| SCG-M12 | 4-8 | 12 | 8.5 | 18/19 | 50 | |
| SCG-M16S | M16*1.5 | 4-8 | 16 | 10 | 22/19 | 50 |
| SCG-M16 | 6-10 | 16 | 10 | 22/22 | 50 | |
| SCG-M18 | M18*1.5 | 6-10 | 18 | 10 | 24/22 | 50 |
| SCG-M20-X | M20*1.5 | 6-10 | 20 | 10 | 27/22 | 50 |
| SCG-M20S | 7-12.5 | 20 | 10 | 27/24 | 50 | |
| SCG-M20 | 8.5-14 | 20 | 10 | 27/27 | 50 | |
| SCG-M25S | M25*1.5 | 8.5-14 | 25 | 10 | 33/27 | 20 |
| SCG-M25 | 12.5-18 | 25 | 10 | 33/33 | 20 | |
| SCG-M32 | M32*1.5 | 18-25 | 32 | 15 | 45/41 | 20 |
| SCG-M36 | M36*1.5 | 18-25 | 36 | 12 | 45/41 | 20 |
| SCG-M40 | M40*1.5 | 18-25 | 40 | 15 | 50/41 | 20 |
SCG-M-L 公制加長螺紋
| 編號 | 螺牙規格 | 電纜范圍(mm) | 螺紋外徑(mm) | 螺紋長度(mm) | 扳手徑 | 包裝 |
| SCG-M12S-L | M12 * 1.5 | 3-6.5 | 12 | 15 | 18/15 | 50 |
| SCG-M12-L | 4-8 | 12 | 15 | 18/19 | 50 | |
| SCG-M16S-L | M16*1.5 | 4-8 | 16 | 15 | 22/19 | 50 |
| SCG-M16-L | 6-10 | 16 | 15 | 22/22 | 50 | |
| SCG-M18-L | M18*1.5 | 6-10 | 18 | 15 | 24/22 | 50 |
| SCG-M20-L | M20*1.5 | 8.5-14 | 20 | 15 | 27/27 | 50 |
| SCG-M25-L | M25*1.5 | 12.5-18 | 25 | 15 | 33/33 | 20 |
SCG-P 德制螺紋
| 編號 | 螺牙規格 | 電纜范圍(mm) | 螺紋外徑(mm) | 螺紋長度(mm) | 扳手徑 | 包裝 |
| SCG-P7S | PG7 | 3-6.5 | 12.5 | 8.5 | 17/15 | 50 |
| SCG-P7 | 4/8 | 12.5 | 8.5 | 17/19 | 50 | |
| SCG-P9 | PG9 | 4/8 | 15.2 | 8.5 | 22/19 | 50 |
| SCG-P11 | PG11 | 6/10 | 18.6 | 10 | 24/22 | 50 |
| SCG-P13.5 | PG13.5 | 7-12.5 | 20.4 | 10 | 27/24 | 50 |
| SCG-P16 | PG16 | 8.5-14 | 22.5 | 10.8 | 30/27 | 50 |
| SCG-P19 | PG19 | 8.5-14 | 24 | 11 | 30/27 | 50 |
| SCG-PG21 | PG21 | 12.5-18 | 28.3 | 12 | 36/33 | 20 |
| SCG-PG29S | PG29 | 13-17.5 | 37 | 12 | 46/33 | 20 |
| SCG-PG29 | 18-25 | 37 | 12 | 46/41 | 20 |
SCG-P-L 德制加長螺紋
| 編號 | 螺牙規格 | 電纜范圍(mm) | 螺紋外徑(mm) | 螺紋長度(mm) | 扳手徑 | 包裝 |
| SCG-P7S-L | PG7 | 3-6.5 | 12.5 | 15 | 17/15 | 50 |
| SCG-P9S-L | PG9 | 4/8 | 15.2 | 15 | 22/19 | 50 |
| SCG-P11-L | PG11 | 5/10 | 18.6 | 15 | 24/22 | 50 |
| SCG-P13.5-L | PG13.5 | 6-12.5 | 20.4 | 15 | 27/24 | 50 |
| SCG-P16-L | PG16 | 8.5-14 | 22.5 | 15 | 30/27 | 50 |
| SCG-P21-L | PG21 | 12.5-18 | 28.3 | 15 | 36/33 | 20 |
SCG-G G制螺紋
| 編號 | 螺牙規格 | 電纜范圍(mm) | 螺紋外徑(mm) | 螺紋長度(mm) | 扳手徑 | 包裝 |
| SCG-G1/4 -5 | G (PF) 1/4" | 3-5.3 | 13.157 | 8.5 | 19/19 | 50 |
| SCG-G1/4 -8 | 4/8 | 13.157 | 8.5 | 19/19 | 50 | |
| SCG-G3/8-7 | G（PF) 3/8" | 3/7 | 16.7 | 10 | 22/22 | 50 |
| SCG-G3/8-10 | 4/10 | 16.7 | 10 | 22/22 | 50 | |
| SCG-G1/2-9 | G (PF) 1/2" | 3/9 | 20.5 | 10 | 27/24 | 20 |
| SCG-G1/2-12.5 | 5-12.5 | 20.5 | 10 | 27/24 | 20 | |
| SCG-G3/4-16 | G (PF) 3/4" | 8/16 | 26.4 | 12 | 33/27 | 20 |
| SCG-G3/4-18 | 10/18 | 26.4 | 12 | 33/27 | 20 | |
| SCG-G1-16 | G (PF) 1" | 13-17.5 | 33.249 | 15 | 46/41 | 20 |
| SCG-G1-18 | 17-25 | 33.249 | 15 | 46/41 | 20 |
SCG-N N制螺紋
| 編號 | 螺牙規格 | 電纜范圍(mm) | 螺紋外徑(mm) | 螺紋長度(mm) | 扳手徑 | 包裝 |
| SCG-NPT3/8-7 | NPT3/8" | 3-5.3 | 17 | 10 | 22 | 50 |
| SCG-NPT3/8-10 | 4/10 | 17 | 10 | 22 | 50 | |
| SCG-NPT1/2-9 | NPT1/2" | 5/9 | 24 | 10 | 24 | 20 |
| SCG-NPT1/2-13 | 7/13 | 24 | 10 | 24 | 20 | |
| SCG-NPT3/4-16 | NPT3/4" | 8/16 | 26.5 | 15 | 33 | 20 |
| SCG-NPT3/4-18 | 10/18 | 26.5 | 15 | 33 | 20 | |
| SCG-NPT1-16 | NPT 1" | 13-17.5 | 33.249 | 15 | 41 | 20 |
| SCG-NPT1-18 | 17-25 | 33.249 | 15 | 41 | 20 |
